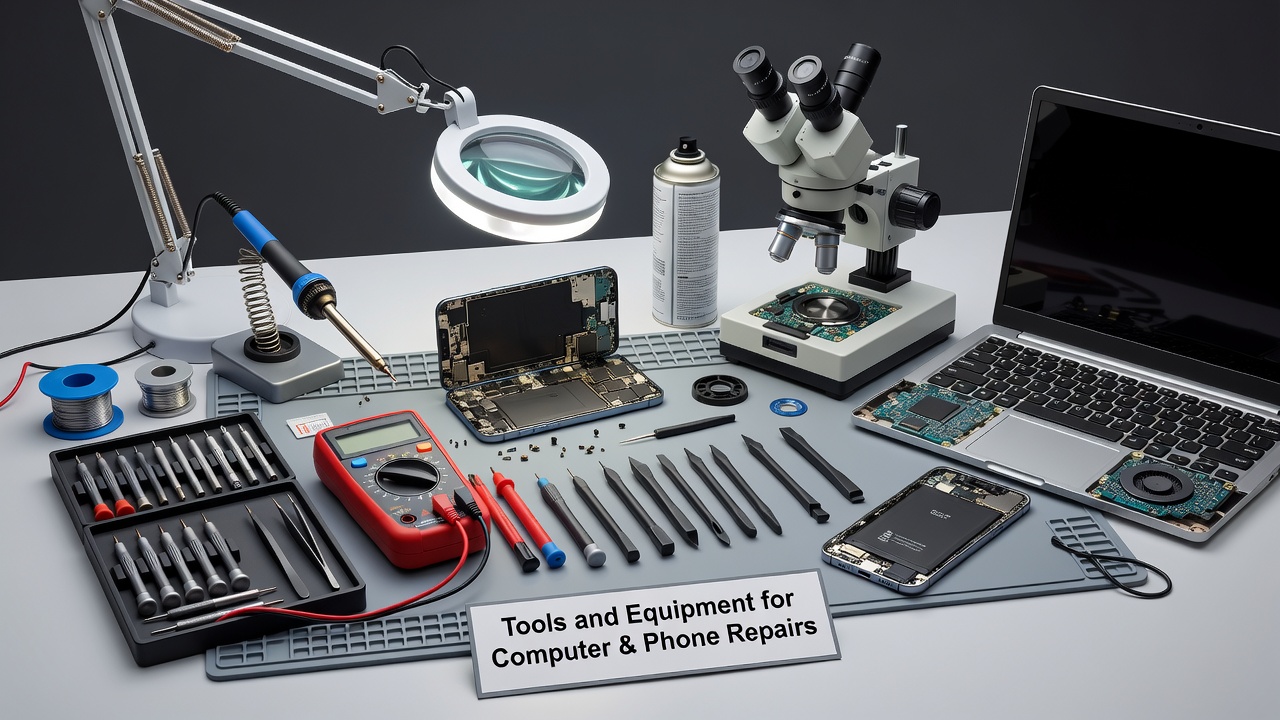

Week 3 – Tools and Equipment for Computer & Phone Repairs

Updated & Expanded Study Notes

Repairing computers and mobile devices requires the right tools for disassembly, diagnosis, component-level repair, and cleaning. Using improper tools can damage delicate electronics or create safety hazards.

---

1. Basic Hand Tools (Mechanical Disassembly)

🔧 Screwdriver Sets

The foundation of any repair kit. Different devices use different screw types.

Common Types:

• Phillips Head (#00, #0, #1)
  Illustration: Cross-shaped tip
  Used in: PC cases, laptop bodies, batteries
• Flat Head (Slotted)
  Illustration: Straight blade
  Used for: Old devices, prying small clips
• Precision Screwdrivers
  • JIS (Japanese Industry Standard) – Common in older laptops
  • Pentalobe – iPhone proprietary star-shaped screws
  • Torx T5 / T6 – Android phones, MacBook hard drives

🔍 Tweezers

• Used for: Tiny screws, ribbons, SIM trays
• Anti-static tweezers prevent ESD damage
• Illustration: Fine pointed metal tips with plastic coating

🪛 Spudger / Pry Tool

• Made of nylon or plastic
• Safe for: Opening clips, disconnecting cables
• Illustration: Flat orange stick with angled edge

⚡ Anti-Static Equipment

• Wrist Strap: Grounds body static
• ESD Mat: Protects work surface
• Illustration: Strap connected to grounded point

---

2. Diagnostic and Repair Tools (Electrical & Component Work)

📟 Multimeter

Most important diagnostic device.

Functions:

Function	Use
Voltage (V)	Test PSU, battery
Resistance (Ω)	Check sensors
Continuity	Trace broken wires

Illustration: Dial with symbols + two probes

🔥 Soldering Iron (25–40W)

• Reattach ports, wires, pads
• Use lead-free solder
• Illustration: Pen-shaped tool with hot tip

🌬 Heat Gun / Hot Air Station

• Removes ICs, glue
• Illustration: Gun with temperature display
• Used in: Phone charging IC replacement

---

3. Cleaning Tools (Maintenance)

💨 Compressed Air

• Blows dust from fans
• Illustration: Can with nozzle

🧪 Isopropyl Alcohol (90%+)

• Cleans paste, contacts
• Evaporates fast

🧼 Brushes & Cloths

• Soft brush: keyboard
• Microfiber: screen

---

Summary Diagram Idea:
[Hand Tools] → [Diagnostics] → [Cleaning] → Safe Repair
